Panel Recommended : TK800, TK1000, TK1250 & TK 1500
Type of Pannel           : Cementitious Infilled Steel HPL Panel
Top Finishes               : U.S.  Formica HPL (1 x 1,000,000 - 1 x 10,000,000,000 ohm)
Concentrated Load     : 800-1500 lbs / force
Height                         : 300mm - 1000mm
Panel Size                   : 600mm x 600 mm x 30mm
Weight                        : 15 kg
Optional Covering        : Conductive Title(2.5 x 10,000 x 1,000,000 ohm

Product Advantage

• Free Standing for easy & fast access
• Electro-static dissipative, drain static charge
  slowly to avoid charge built-up on the panel surface
• Easy maintenance & durable surface cover
• Resistance to many chemicals that are found
  in industrial environments

Ventilation raised floor

Understructure System : Rigid Grid Bolted Stringer (Cross-Pieces)

• Workers accessing under the floor never seem to put the floor compnents back in properly if the grid snaps (snap on stringers) in place.  That is why it is highly recommended to bolt
  the grid, to discourage workers from disassembling the floor system.
• We have found that with heavy loads, it is a much safer environment when the grid is bolted. Bolting the stringers (cross-pieces) to the pedestal (floor jacks) creates a rigid grid even when floor titles are removed.

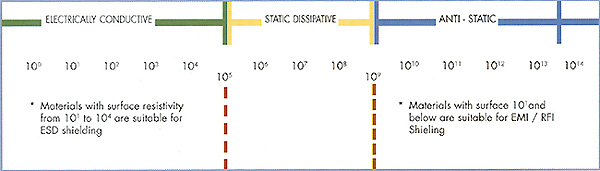

Earthing System

HIGH PRESSURE LAMINATE
Anti-Static and Conductive

HOMOGENEOUS VINYL
Anti-Static and Conductive

LINOLEUM

RUBBER
Anti-Static and Conductive

CARPET
Anti-Static

1. Tickness                    3.0 mm
2. Electrical Resistance Between two electrodes 25,000 to 1,000,000 ohms
                                      Floor to ground greater than 25,000 ohms
3. Static Generation       Less than 100 volts with conductive footwear per AATCC 134 at 20% relative humidity
4. Static Decay              5,000 volts to zero in less than 0.03 seconds
5. Fire Resistance          Critical Radiant Flux : >1.08 w/cm2
                                      Flame Spread : < 75
                                      Smoke Density : < 450
6. Abrasion Resistance  Cycles % Gauge loss
                                      2,500       0.40
                                      5,000       0.80
                                      7,500       1.20
                                    10,000       1.60

No.              Property                                             Specification

---

1.                Thickness                                           1.2 / 1.5 mm

2.                Electrical                                             GJB 300 7-97
                   Surface Resistance                            1 x 1,000,000 - 1 x 10,000,000,000 ohms

3.                Flammable Fire Hazards                      GB4609-8-7
                                                                              FV-1 (<30S)

5.                Abrasion Resistance                           (>350 cycles)
                  Test Result                                          2000-2250 cycles
